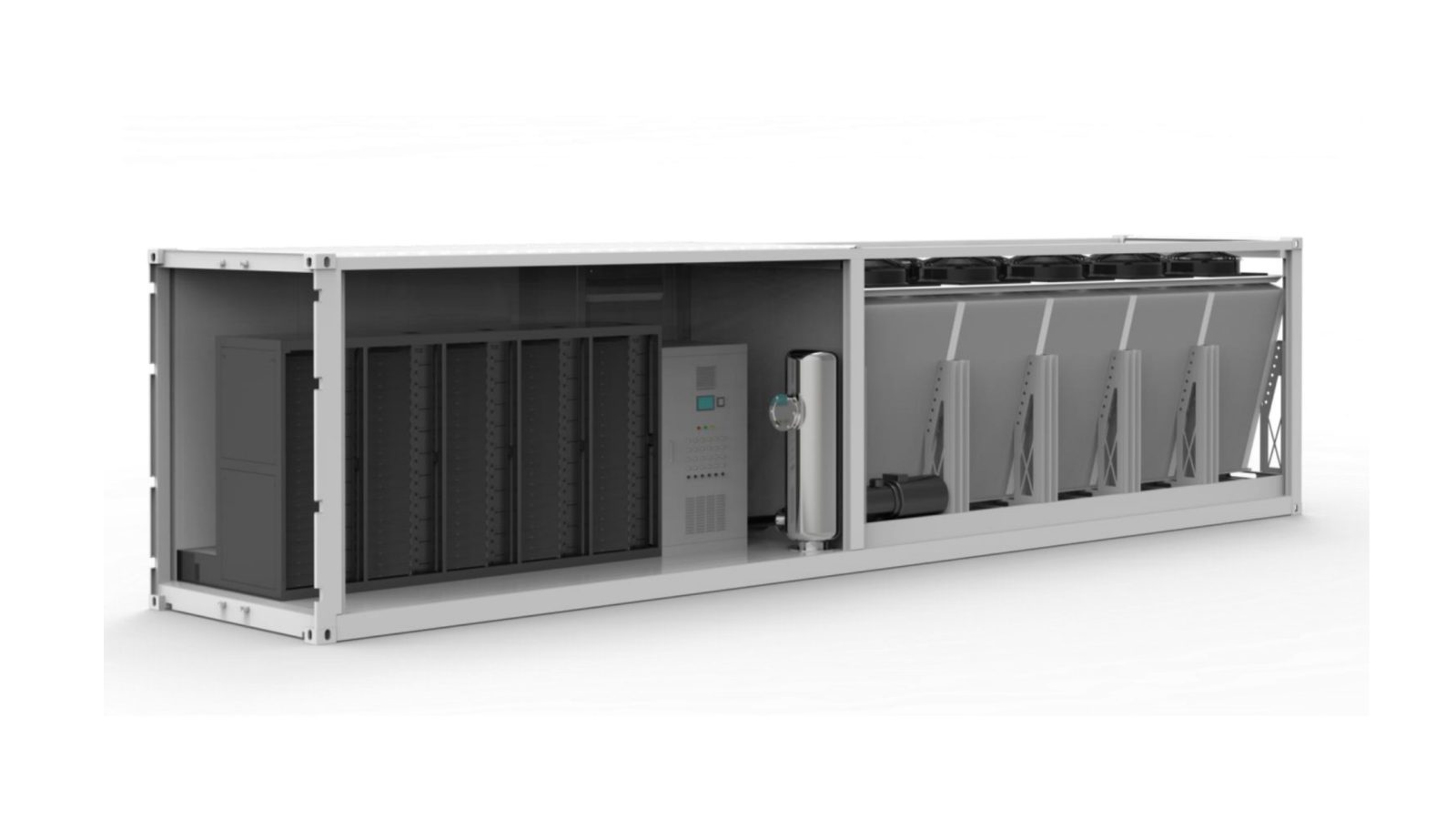

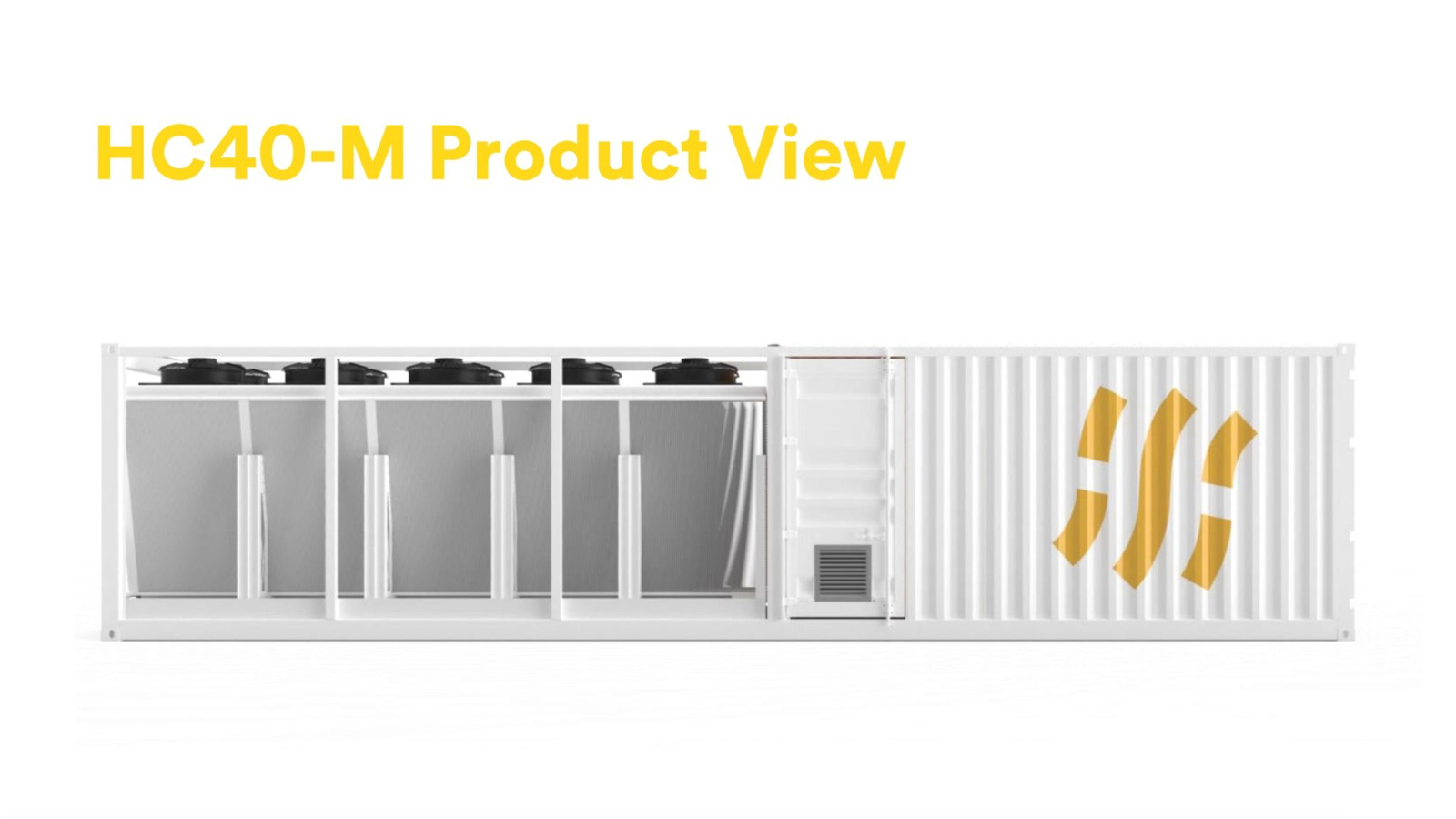

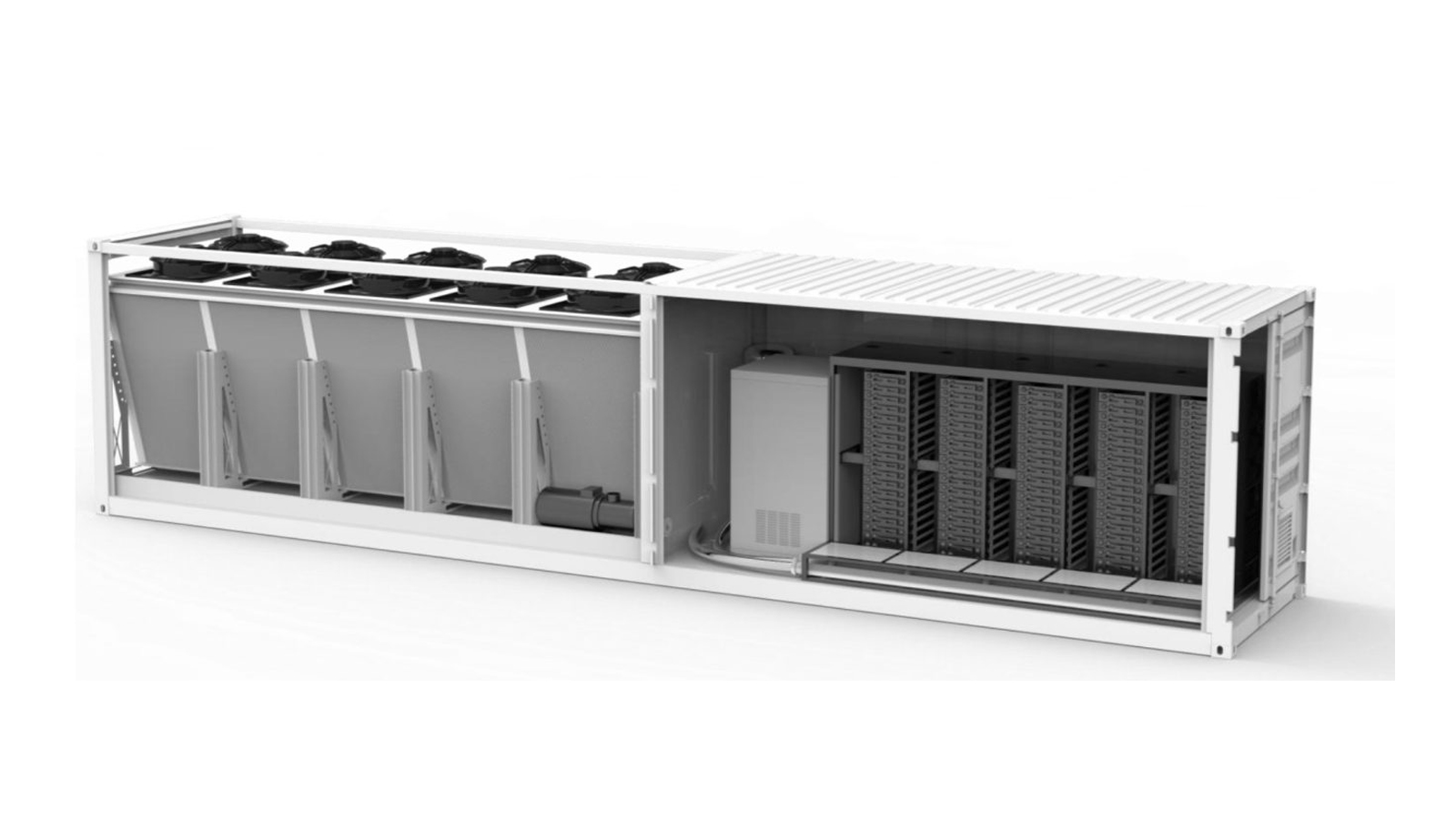

Hydro Cooling HC40-M Container Series Support 100 Whatsminer M63/M53 Hydro Miners

Quantity:

Brand: FOG HASHING

SKU:{{ product.sku }}

Model: {{ product.model }}

weight: {{ product.weight }} Kilogram

Deployment: Containerized deployment based on 40HQ container
Capacity per Container: Supports 100 units of Whatsminer M63/M53 Hydro Max
Target Miner: Bitcoin miners (compatible with M63/M53 Hydro series)
Power Configuration: Total load 1400kW, equipped with 1400kW smart CDU (Cabinet Distribution Unit)
Cooling System: Integrated dry cooler, designed for 1400kW heat dissipation @30°C ambient temperature
Environmental Tolerance:
- Operating Temperature: -10°C to 45°C
- Humidity Range: 5% to 80%

Parameter	Specifications
Size	12192(L)×2438(W)×2896(H) mm
Rack Configuration	5 racks
Input Voltage	3-phase 380-415V, 50/60Hz
Power Capacity	1400kW
Miner Support	100 units of M63/M53 Hydro series
Network Configuration	5×100Mbps Ethernet Switch + 1×1000Mbps Main Switch
Cooling System	Dry cooler (Inlet/Outlet Temperature 50°C/58.5°C)

Parameter	Specifications
Cooling Capacity	1200kW @30°C ambient temperature
Input Voltage	3-phase 350-415V, 50/60Hz
Fan Power	4.1kW ×10 units
Spray Pump Power (Optional)	1kW
Inlet/Outlet Water Temperature	60°C Inlet / 50°C Outlet
Weight	Dry Weight 3600kg / Wet Weight 4600kg
Noise Level	<76 dB (measured at 10m distance)

ASIC Miner
Accessories	Hydro cooling Solution
