Product Details Attribute

Product Overview

Integrated Deployment: Direct oil-cooling circulation without secondary heat exchange structures.
Modular Design: Pre-assembled tank and dry cooler, requiring only water/power connections for operation.
Flexible Compatibility: Supports single/three-phase power and mainstream mining rigs.

Technical Specifications

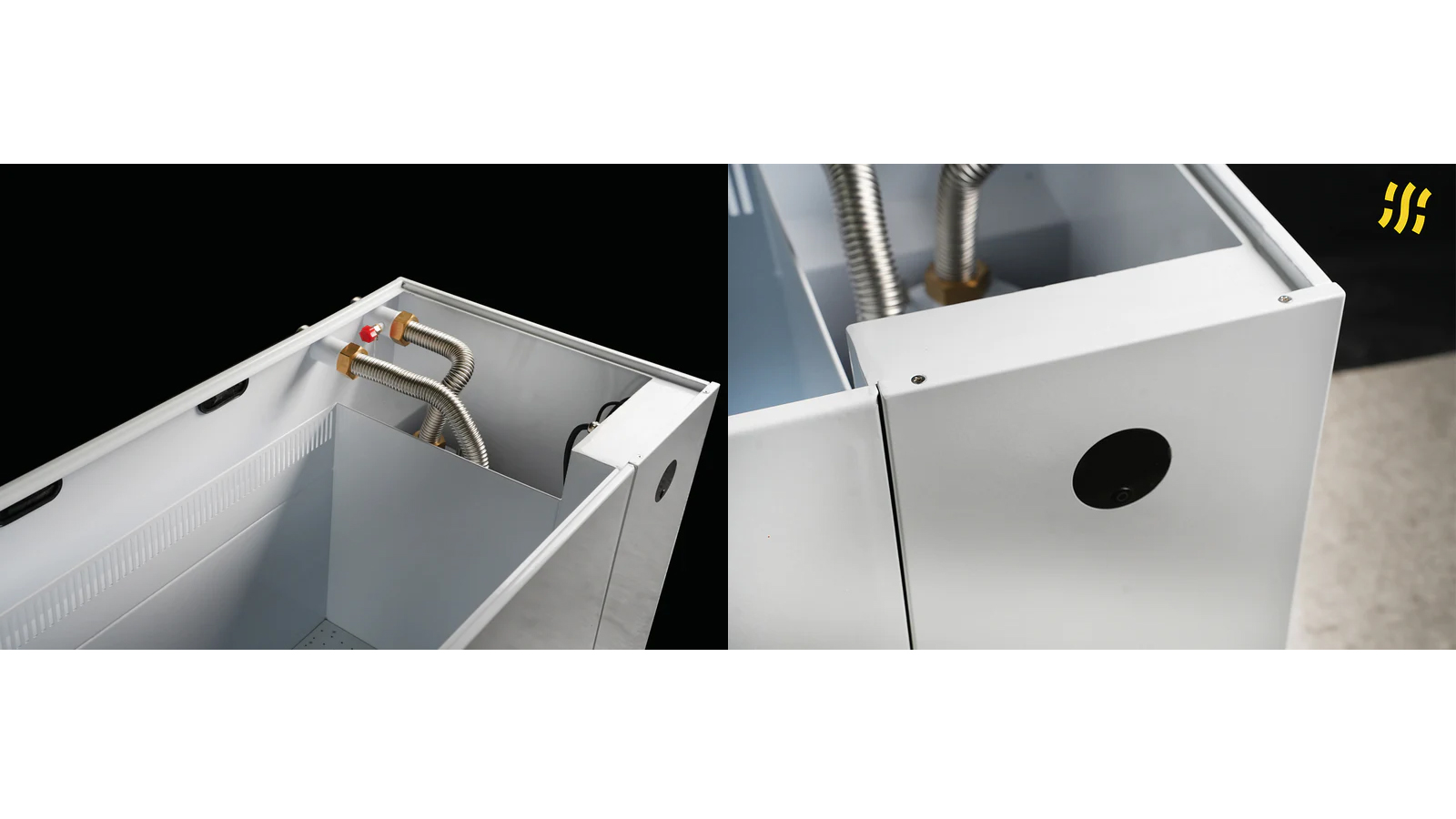

1. C6 Coolant Tank

Parameter	Specifications
External Dimensions	1185(L) × 530(W) × 760(H) mm
Internal Volume	912(L) × 404(W) × 355(H) mm
Coolant Capacity	200L
Flow Rate	90L/min
Input Voltage	Single-phase 200–240V, 50/60Hz
Max Power Consumption	800W (normal) / 1100W (peak)
Gross Weight	110kg
Noise Level	≤45dB(A) @10m
Supported Miners	6×S19/S21 Hydro or 8×M50/M60 Hydro
PDU Interface	Single-phase: 220V/125A (6×C19) Three-phase: 380V/63A (6×C19)

2. C6 Dry Cooler

Parameter	Specifications
External Dimensions	1680(L) × 400(W) × 1015(H) mm
Cooling Capacity	24kW @35°C ambient temperature
Coolant Temperature	Inlet 63°C / Outlet 53°C
Input Voltage	Single-phase 200–240V, 50/60Hz
Max Power Consumption	10–1400W (dynamic adjustment)
Fan Configuration	EC variable-speed fans × 4
Electrical Interface	C14 standard × 1
Gross Weight	110kg
Noise Level	≤65dB(A) @10m (full load)
